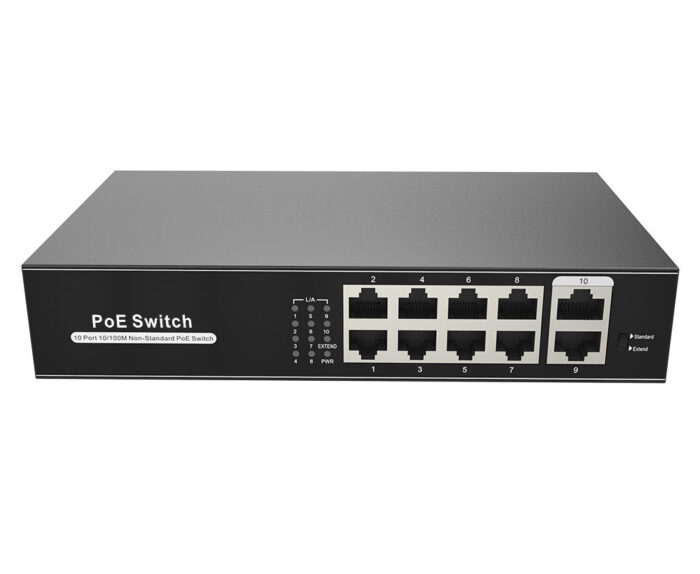

24V POE Unmanaged 10*100M Port Support 10M/250m POE Switch

Private Mold:Yes Products Status:Stock Ports:10 Transmission Rate:10/100Mbps Function:LACP, POE, QoS, VLAN Support Communication Mode:Full-Duplex Switch Capacity:14.8Gbps Place of Origin:Guangdong, China Device Type:Switch Input voltage:AC(100-240)V Product status:Stock IP Garde:IP40 PoE Ports:8*10/100Mbps PoE Ports Weight:1kg Dimensions (W x D x H):195*130*40mm MOQ:1 Color:Balck Selling Units:Single item Single package size: 21X25X5 cm Single gross weight:1.000 kg Package Type:50pcs: 515*505*337mm Lead time:Quantity(pieces)1 – 5051 – 100>100Lead time (days)1216To be negotiated 1108PL series is an unmanaged PoE switch independently developed by ONV.It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports . Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 110W.  10/100Mbps Access ,Dual RJ45 Ports Uplink   —   10*10/100Base-TXRJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.   —   Support non-blocking wire-speed forwarding.   —   Support full-duplex based on IEEE802.3x and half-duplex based on backpressure. Intelligent PoE Power Supply  —    8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.  —    IEEE 802.3af/at PoE standard, without damaging non-PoE devices.. Innovative Function —  Long distance file: switch to “E”, port 1-8 speed is reduced to 10M, using existing twisted pair                cable,  you can break the limit of transmission of twisted pair 100 meters, the transmission distance       can reach 250 meters; On the other hand, it is possible to solve the problem of poor transmission           due to lineaging. —  Video surveillance mode: Opens with long-distance switches. Port 1-8 are isolated from each other         but communicate with port 9-10 to prevent DHCP conflicts, optimize port cache utilization, and            reduce broadcast storms. Stable and Reliable   —   Low power consumption, IP30 galvanized steel casing,No fan mute design design.   —   Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.   —   CCC,CE, FCC, RoHS.   —   Plug and play, no configuration, simple and convenient.   —   The user-friendly panel, it can show the device status through the LED indicator of PWR,Link，PoE. Fixed Port 8*10/100Base-TX PoE ports (Data/Power)  2*10/100Base-TX Uplink RJ45 ports (Data) Ethernet Port Port 1-10 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) Functional Switch 1*(Extender CCTV) After opening, port 17-24 support  10M/250 meters long distance  transmission. Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. Chip Parameter Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x  Forwarding Mode Store and Forward(Full Wire Speed) Switching Capacity 2Gbps  ForwardingRate@64byte 1.49Mpps 6.55Mpps Mac 2K Buffer Memory 1.25M LED Indicator Power: PWR (green); Network: Link（yellow）; POE :PoE (green) PoE & Power  PoE Port Port 1 to 8 IEEE802.3af/at @ POE Port 1 to Port 24 IEEE802.3af/at @ POE Power Supply Pin Default: 1/2 ( ), 3/6 (-) ; Optional 4/5( ), 7/8(-) Max Power Per Port 30W; IEEE802.3af/at Total PWR / Input Voltage 110W (DC 52V) 250W (DC 52V) Power Supply External power adaptor  AC100~240V 50-60Hz 2A External power adaptor  AC100~240V 50-60Hz 5A Power Consumption Standby:<6W;Full load:<110W Standby:<8W;Full load:<240W Physical Parameter Operation TEMP / Humidity -20~ 55°C;5%~90% RH Non condensing Storage TEMP / Humidity -40~ 75°C;5%~95% RH Non condensing Dimension (L*W*H) 191*105*29mm  330*204*44mm Net /Gross Weight <0.6kg / <1.0kg <0.6kg / <1.2kg Installation Desktop, Wall-mounted Certification & Warranty Lightning protection Lightning protection: 4KV 8/20us; Protection level: IP30 Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS Warranty 3 years , lifelong maintenance.
