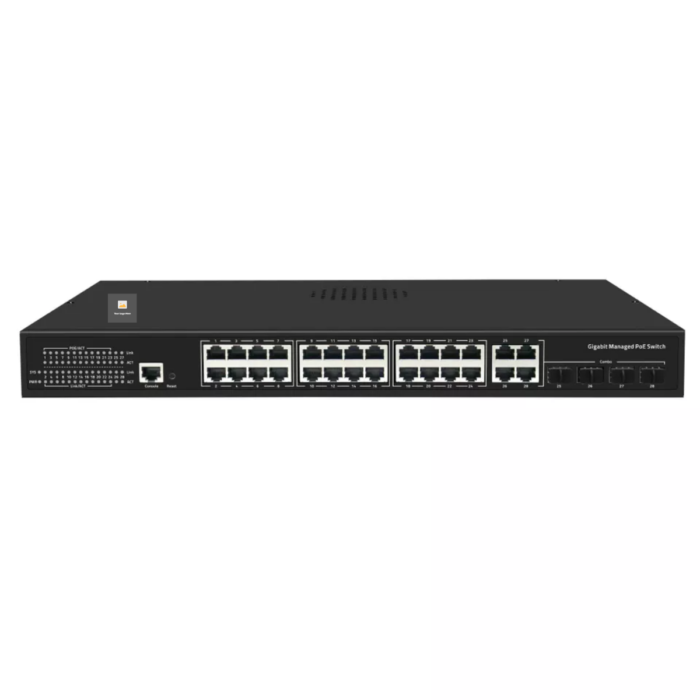

24*10/100/1000M POE Ports 4*Gigabit SFP/TP Combo Ports 1*Console Port Gigabit Managed POE Switch poe gigabit switch

Private Mold:NO Products Status:Stock Ports:24 Transmission Rate:10/100/1000Mbps Function:POE Communication Mode:Full-Duplex & Half-Duplex Switch Capacity:14.8G Brand Name:HTF Model Number:HT-POE5624M Place of Origin:Guangdong, China Product Model:HT-POE5624M Product Name:28 Port Gigabit Managed POE Switch MAC:8K Forwarding Mode:Store-And-Forward MTBF:100,000 hours Warranty:2 years warranty Bandwidth:56Gbps (non-blocking) Packet Forwarding rate:41.66Mpps Packet Buffer Memory:4M Jumbo frame:9.6Kbytes Selling Units:Single item Single package size: 50X35X9 cm Single gross weight:10.000 kg Package Type:Neutral gift box Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32535To be negotiated The 32-ports Gigabit Managed POE Switch is a Green Energy-Saving POE Switch independently . It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data. Features 1. Can transfer data for network surveillance cameras; 2. 24 x 10/100/1000Mbps auto-sensing POE Ports, 4 x 10/100/1000Mbps ComboPorts, 1 x Console Port; 3. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward; 4.Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w); 5. Ethernet port supports 10/100/1000M adaptive and POE functions; 6.Panel indicator monitoring the status and help failure analysis; 7. Fanless design, Natural Cooling, 1U Rack Mount; 8. Support 802.1x port authentication, support AAA authentication, support TACACS authentication; 9. Support WEB, TELNET, CLI, SSH, SNMP, RMON management; 10. Support POE Power Management; 11. Support POE Watchdog 12. Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV. Target Industries 1.HD monitor transmission and power supply 2.Wireless AP layout transmission and power supply 3.Network telephone transmission ,intelligent house and home system 4.Intelligent transportation supervisory system (ITS) 5. High-speed Way supervisory/Tele-Communication System 6. Security protection system, TV medical treatment 7. Long-distance Muti-media Schooling, Campus monitoring 8. Long-distance broadcast television transmission system 9. High-building Security Protection, Military Tele-Com proje Product Description General Performance Indicator Product Name 28 Port Gigabit Managed POE Switch Product Model HT-POE5624M Interface 24*10/100/1000M POE Ports 4*Gigabit SFP/TP Combo Ports 1*Console Port Network Protocols IEEE 802.3IEEE 802.3uIEEE 802.3ab/ad/az/af/atIIEEE 802.3xIEEE 802.1qIEEE 802.1p,QoSIGMP Snooping PoE Parameters PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive POE port output: DC48-55V Power Pin Assignment: Power over spare pairs 1/2( ) and 3/6 (-) Port Lightning Protection General Mode 6KV,Differential Mode 4KV,ESD 15KV. Network Transmission Medium 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)100BASE-TX: UTP (≤100 m) above Cat51000BASE-TX: UTP (≤100 m) above Cat5 Optical Multimode fiber: 1310nm, 2KmSingle mode fiber: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km The LED indicator SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3) Power Supply Machine input voltage: AC110-264V;Output: DC52V7.69A Total power: 400W Physical Dimension Product size (L×W×H): 445mm× 285mm× 45mmPackage size (L × W × H): 470mm × 350mm × 120mmProduct weight: 3.9kgPackage weight: 4.5 kg Working Environment Operating Temperature: -20°C ~ 55°C;Storage Temperature: -40°C ~ 85°C; Operating Humidity: max 90%, non-condensingWorking height: up to 10,000 feet (3,000 meters)Storage height: up to 10,000 feet (3,000 meters) MTBF: 100,000 hours Package Contents 1. Switch: 1 set2. Instruction manual: 13. Certificate of conformity: 14. Warranty card: 15. AC power cord 16. A pair of hanging ears Warranty 2 years warranty Technical Indicators Bandwidth 56Gbps (non-blocking) Packet Forwarding rate 41.66Mpps Jumbo frame 9.6Kbytes Flash Capacity 16M Memory Capacity 1024M(1G) MAC 8K Product Photos Details Images
