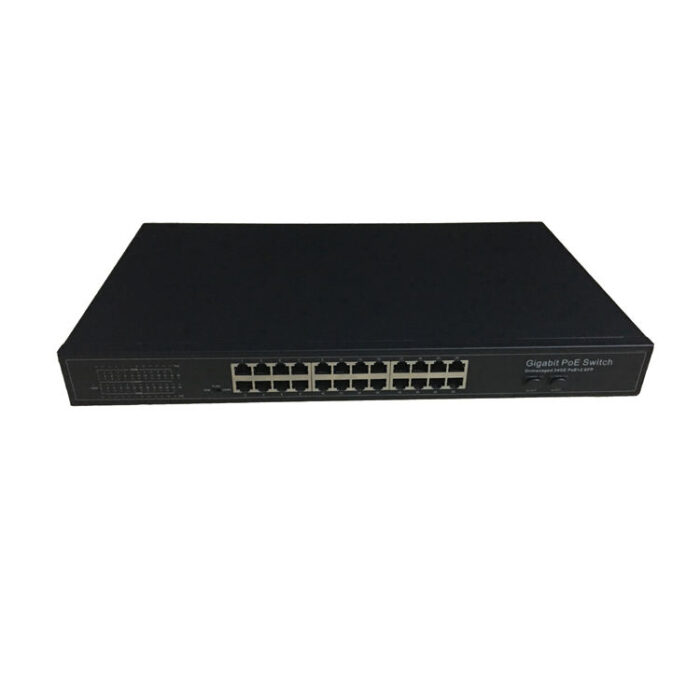

24 port manageable PoE switch Gigabit managed PoE with 2 SFP fiber port

Products Status:Stock Ports:24 Transmission Rate:10/100/1000Mbps Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support Communication Mode:Full-Duplex & Half-Duplex Switch Capacity:56Gbps Model Number:TS8200-24P-2FM Place of Origin:Guangdong, China PoE Ports:24 Ports Uplink Ports:2GE SFP Management port:1*Console PoE Standard:IEEE802.3af /IEEE802.3at Whole Power:400W Input:100-240VAC 50/60HZ Max Power Per Port:30W Certification:CE FCC RoHS Operating temperature:0°– 55°C Dimensions (W x D x H):440X290X45mm( W*L*H) Supply Ability 5000 Piece/Pieces per Month Packaging Details bubble box, carton Port GUANGZHOU SHENZHEN Picture Example: Product Description 24 port manageable PoE switch Gigabit managed PoE with 2 SFP fiber port Specifications Hardware Model TS8224P-2FM Port 24*10/100/1000M 2GE SFP Management port 1*Console Reset KEY 1 bandwidth 56Gbps Packet forwarding 40.32Mpps POE port 24 POE standards IEEE802.3af/at max 30W/port CPU 500MHZ RAM 128M MAC 8K buffer 4.1M FLASH 16M transmission Store and forward Environmental working temperature: 0℃~50℃ Storage temperature: -40℃~70℃ Operating humidity: 10%~90% Non-coagulation Storage humidity: 5%~95% Non-coagulation Product size 440(L)*290(W)*45(H)mm Packing size 497(L)*393(W)*97(H)mm Weight 5.0kg Power in AC 100~240V 50/60hz Power ≤400W WEB software function Standards IEEE 802.3xIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3zIEEE 802.3adIEEE 802.3q, IEEE 802.3q/pIEEE 802.1w, IEEE 802.1d, EEE 802.1S MAC Address 8K MAC addresses; MAC address learning and aging VLAN 4k VLANS; Port-based VLANs; 802.1Q VLAN Spanning Tree STP(Spanning Tree Protocol)RSTP/MSTP( Rapid Spanning Tree Protocol)EPPS ring network protocolEAPS ring network protocol802.1x argumentation agreement Link Aggregation Max 8 aggregation groups, each supports 8 portsStatic aggregation and dynamic aggregation Port Mirror Many-to-one port mirroring Loop Guard Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery Isolation Support downlink ports isolated from each other and communicate with upstream port Port flow control Half duplex based back pressure controlFull duplex based on PAUSE frames Line rate Support port based input / output bandwidth management IGMP Snooping IGMPv1/2/3 and MLDv1/2 SnoopingGMRP protocol registrationMulticast address management, multicast VLAN, multicast routing ports, static multicast addresses DHCP DHCP Snooping Storm suppression Unknown unicast, multicast, unknown multicast, storm suppression of broadcast typeStorm suppression based on bandwidth tuning and storm filtering Security User port IP address MACACL based on IP and MACSecurity properties of port based MAC address quantities QOS 802.1p port queue priority algorithmCos/Tos, QOS signWRR (Weighted Round Robin), Weighted priority rotation algorithmWRR, SP, WFQ, 3 priority scheduling models Port Auto-MDIX ; Auto negotiation System Maintenance Upgrade package upload; system log viewWEB restore factory configuration PoE Management Open or close portStandard POE scheduling managementA variety of timing reset function (recently upgraded)POE Automatic equipment on-line inspection Management and maintenance WEB NMSRemote configuration and maintenance using TelnetSNMP V1/V2/V3; SSH V1/V2RMON
